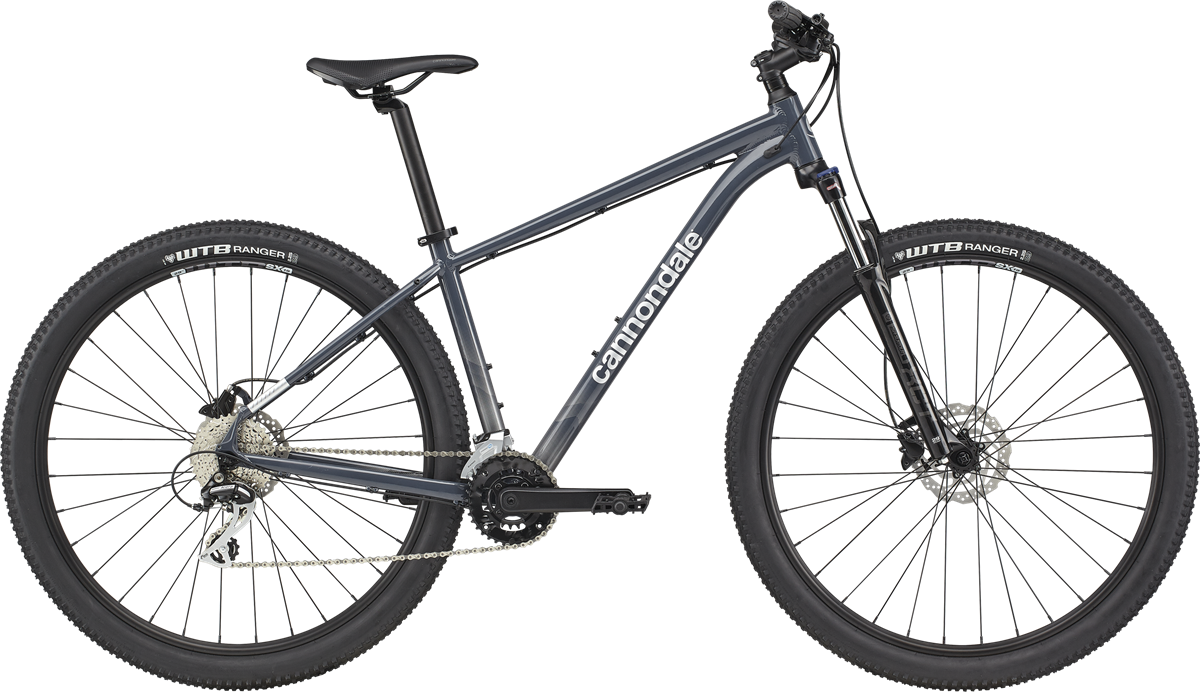

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Simple yet sophisticated aluminum construction yields a light, lively frame that outperforms anything in its class.
Delivers a smoother, more controlled ride thanks to strategically engineered flex zones built into the frame's rear triangle.
A slack 68° head angle creates exceptionally stable handling so that you can charge the descents with confidence.
The smaller sizes of Trail roll on 27.5" wheels, while the larger sizes come with 29" wheels to deliver the best blend of fit, fast and fun for every rider.
For an integrated look and easy maintenance, the shift and dropper post cables route cleanly through the StraightShot window in the down tube, while the rear brake line is secured outside the frame.
Model Code | C26603U |
---|---|
Frame | SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73, rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount |
Fork | SR Suntour XCT 30, 100mm, coil, 42mm offset (27.5") 46mm offset (29") |
Headset | Semi-Integrated, 1-1/8" |
Rear Derailleur | Shimano Acera |
Shifters | Shimano Alivio, 9-speed |
Chain | KMC X9, 9-speed |
Crank | Prowheel, 36/22 |
Rear Cogs | Shimano HG200, 11-36, 9-speed |
Bottom Bracket | Sealed cartridge bearing, square taper |
Brakes | Tektro M275 hydraulic disc, 160/160mm rotors |
Brake Levers | Tektro hydraulic disc |
Rims | WTB SX19, 32h |
Spokes | Stainless Steel, 14g |
Tire Size | 2.1 |
Wheel Size | 29 |
Hubs | (F) Shimano HB-TX505, QR / (R) Shimano FH-TX505, QR |
Tires | WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
Stem | 6061 Alloy, 31.8, 7° |
Grips | Cannondale Dual-Density |
Saddle | Cannondale Stage 3 |
Seatpost | Cannondale 3, 6061 Alloy, 31.6x350mm (XS-SM), 400mm (MD-XL) |
Size | Height Range |
---|---|
XS | 4'6" - 5'2" |
SM | 5'1" - 5'4" |
MD | 5'4" - 5'8" |
LG | 5'7" - 6'0" |
XL | 6'0" - 6'3" |
*These size ranges should be viewed only as a starting point. Everyone is built differently and the best way to determine the correct size is to test ride.
