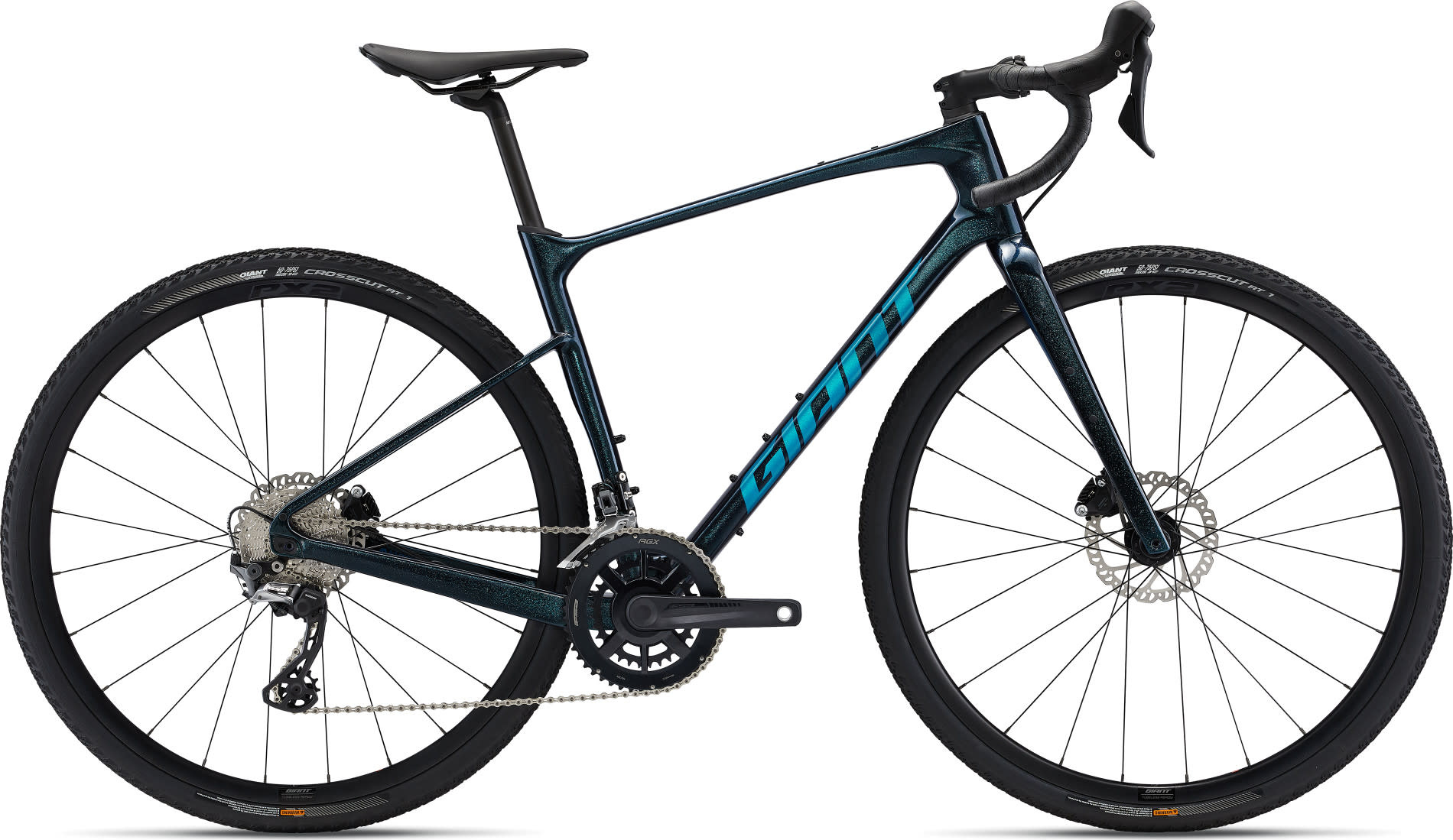

Giant Revolt Advanced 2

FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

KEY PERFORMANCE FACTORS

Fast and light
New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Product Details:

Frame:  Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork:  Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:  N/A
Handlebar:  Giant Contact XR D-Fuse, 31.8mm
Grips:  Stratus Lite 3.0
Stem:  Giant Contact, 8-degree
Seatpost:  Giant D-Fuse, composite, 14mm offset
Saddle:  Giant Approach
Pedals:  N/A
Shifters:  Shimano GRX RX-600, 2x11
Front Derailleur:  Shimano GRX RX-810
Rear Derailleur:  Shimano GRX RX-810
Brakes:  Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers:  Shimano GRX RX-600 hydraulic
Cassette:  Shimano 105, 11-speed, 11x34
Chain:  KMC X11SL-1
Crankset:  FSA Omega AGX, 32/48
Bottom Bracket:  Praxis, press fit
Rims:  Giant P-X2 Disc wheelset
Hubs:  Giant P-X2 Disc wheelset
Spokes:  Giant P-X2 Disc wheelset
Tires:  Giant CrossCut AT 1, 700x38c, tubeless
Extras:  tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position
