Unleash pure power and elevate your trail riding experience with the Cannondale Moterra S4, an e-mountain bike made to amplify the fun factor on any terrain.

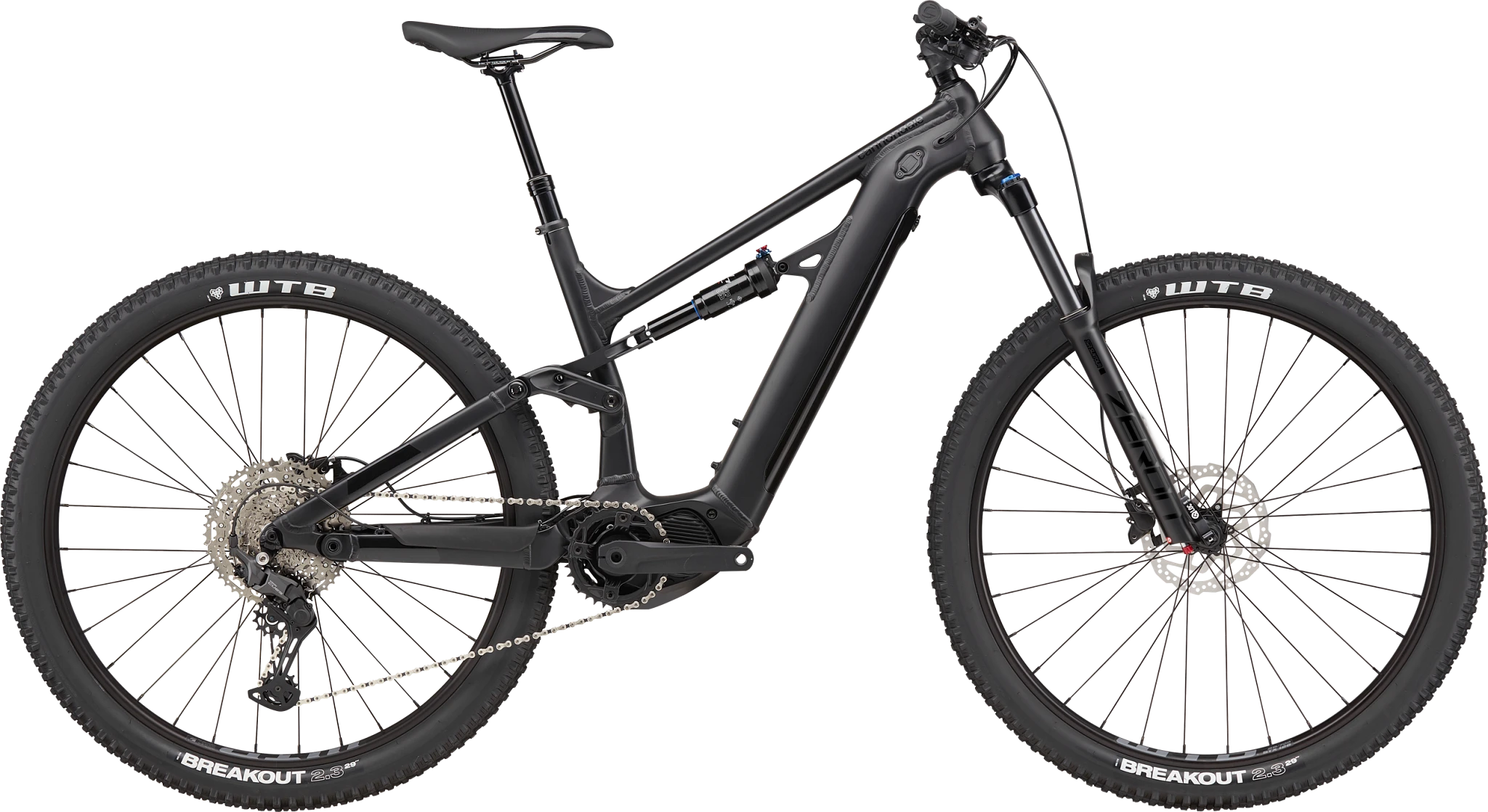

Unleash pure power and elevate your trail riding experience with the Cannondale Moterra S4, an aluminum e-mountain bike engineered to amplify the fun factor on any terrain. Designed to thrive in mountainous landscapes, this bike is built for unadulterated trail-riding enjoyment. Experience impressively precise handling, surprising agility, and incredible fun on every type of trail, thanks to its low center of gravity and meticulously dialed geometry. The integrated power, extended range, and renowned reliability of the Shimano STEPS EP6 drive system, coupled with a 504Wh battery, mean you can conquer any trail—again and again. A SmartForm C2 aluminum chassis features 150mm of balanced front and rear travel for an aggressive all-mountain attack. Fast-rolling 29-inch large-volume tires, wide handlebars, an expansive gear range, and a premium finishing kit ensure exhilarating times on the dirt.
With its low center of gravity and dialed geometry, the Moterra S delivers handling that will help you find a whole new level of precision and agility on any kind of trail.
Features the integrated power, range, and reliability of the Shimano STEPS EP6 series drive system and a 504 Wh battery, allowing you to ride anything, repeatedly.
The large 504 Wh battery provides the range to seek out serious adventure. A weather-sealed compartment keeps the battery dry, safe, and easily accessible for convenient in-home charging.
Shimano's easy-to-use switch unit allows you to change assist modes without taking your hands off the bars, while the easy-to-read display provides all important information—speed, battery level, mode, and more—at a glance.
Optimized for e-MTBs, a tuned 4-bar link suspension delivers 150mm of travel, offering a crisp pedaling feel, grippy traction on climbs, and supple smoothness on descents.
Proper trail-riding frame geometry and true trail-ready components make this rig a blast on everything from rolling hills to hardcore singletrack.
The thru-axle pivot system creates a rock-solid connection between both sides of the swingarm, ensuring no twist, no flex, and instantaneous response.
Model Code | C65243U |
---|---|
Frame | 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
Fork | SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust, tapered steerer, 44 mm offset |
Headset | Integrated, 1-1/8 to 1.5", sealed bearings |
Rear Shock | X-Fusion O2 Pro Air, adjustable rebound, lock-out |
Drive Unit | Shimano EP6 |
Battery | Shimano BT-EN8035, 504Wh |
Charger | Shimano Battery Charger 2A |
Display | Shimano SC-EN500 |
Rear Derailleur | Shimano CUES U6000, 11-speed |
Shifters | Shimano CUES U6000, trigger style, 11-speed |
Chain | Shimano LG500 Linkglide, 11-speed |
Crank | FSA E-Bike for Shimano, 165mm, 34T |
Rear Cogs | Shimano CUES LG400, 11-50, 11-speed |
Brakes | Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
Brake Levers | Shimano MT200 hydraulic disc |
Rims | WTB STX i25 TCS, 32h |
Spokes | Stainless Steel, 14g |
Wheel Size | 29 |
Hubs | (F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock |
Tires | WTB Breakout Comp, 29x2.3", DNA compound |
Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6° |
Grips | Cannondale Locking Grips |
Saddle | Cannondale Stage 3 |
Seatpost | TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL) |
*Please note that, based on component availability and other factors, specifications are subject to change without notice.
Size | Height Range |
---|---|
SM | 5'1" - 5'5" |
MD | 5'4" - 5'9" |
LG | 5'8" - 6'1" |
XL | 6'0" - 6'5" |
*These size ranges should be viewed only as a starting point. Everyone is built differently and the best way to determine the correct size is to test ride.
